With over 26 YEARS of EXPERIENCE and everyday learning from hotel operators and managers,
more than 36,000 ROOMS installed in more than 80 counties wordwide, important references
and a solid range of products, we are recognized as one of the leader in the KNX HOTEL
MARKET, through constant development of solutions and high experience on project, advising
always the best to our customers.

Deploying a wide spectrum of dedicated solutions, Eelectron is assuring considerable energy
savings through an intelligent management of lighting, heating and cooling systems, delivering
fast returns on investments and flawless project execution.

Since 1996, Eelectron is providing different smart solutions in hospitality market for the
HOSPITALITY INDUSTRY following changing market needs and evolving standards. Our
system integrations has proven to be among the most reliable, cost effective and technologically
advanced.

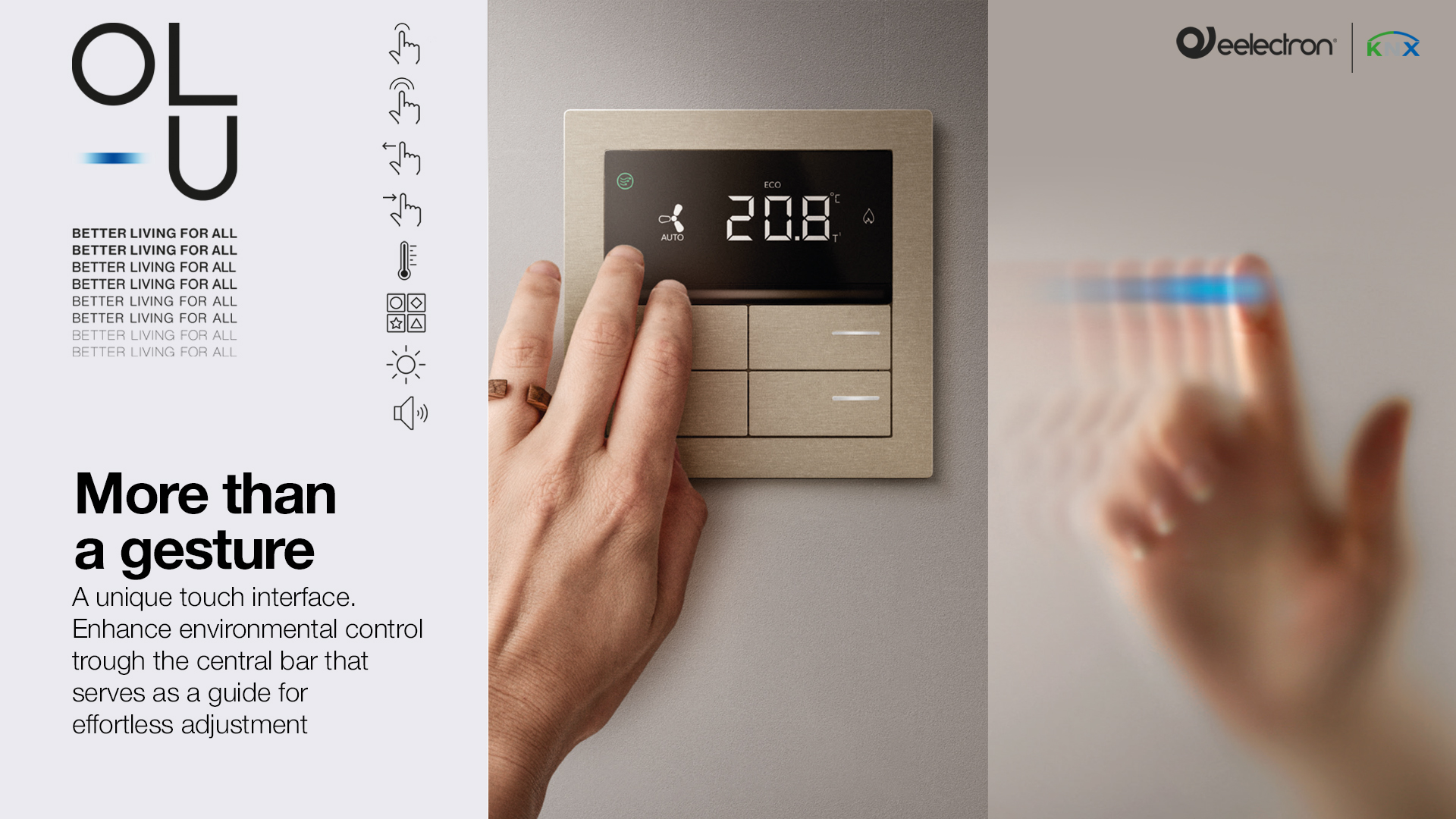

The OL-U series consists of mechanical KNX devices with a distinctive RGB touch bar interface. It enhances environmental control by providing an intuitive central bar for effortless adjustments.

Crafted for versatility, it adapts to a wide range of requirements, offering various models, modular components, configurations, finishes, and materials.

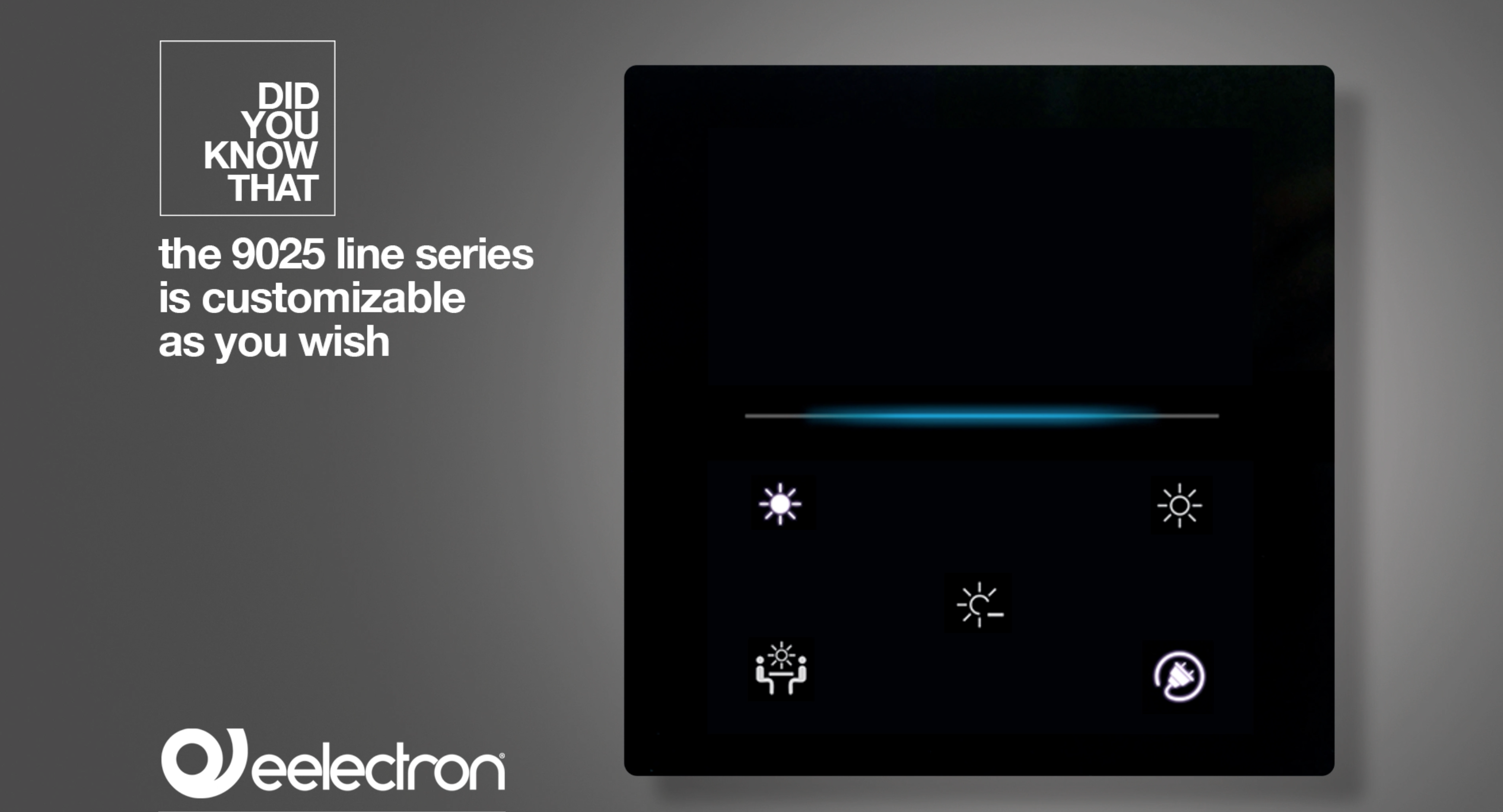

The KNX® 9025 switch range consists of 4 – 8 – 10 channels capacitive buttons. Each button can be configured to manage on/off commands, dimming, shutters and venetians control, scene recall and control, objects sequences etc.,9025 Switches has an embedded temperature sensor and a configurable digital or analog input; It’s possible to connect an additional NTC temperature probe (eelectron codes TS01A01ACC or TS01B01ACC – not included) to perform a direct temperature measurement. 9025 range has a RGB led bar on the front side in order to visualize feedbacks or other values available over the KNX bus (function available on the RGB range). Devices may have glasses in CUSTOM version. Using glasses in CUSTOM version is possible to light up custom and interchangeable icons matching with the associated function. The 9025 KNX® range is mounted in 2 or 3 modules box and is compliant with main standards (British, German, Italian, etc). Device is equipped with KNX communication interface.

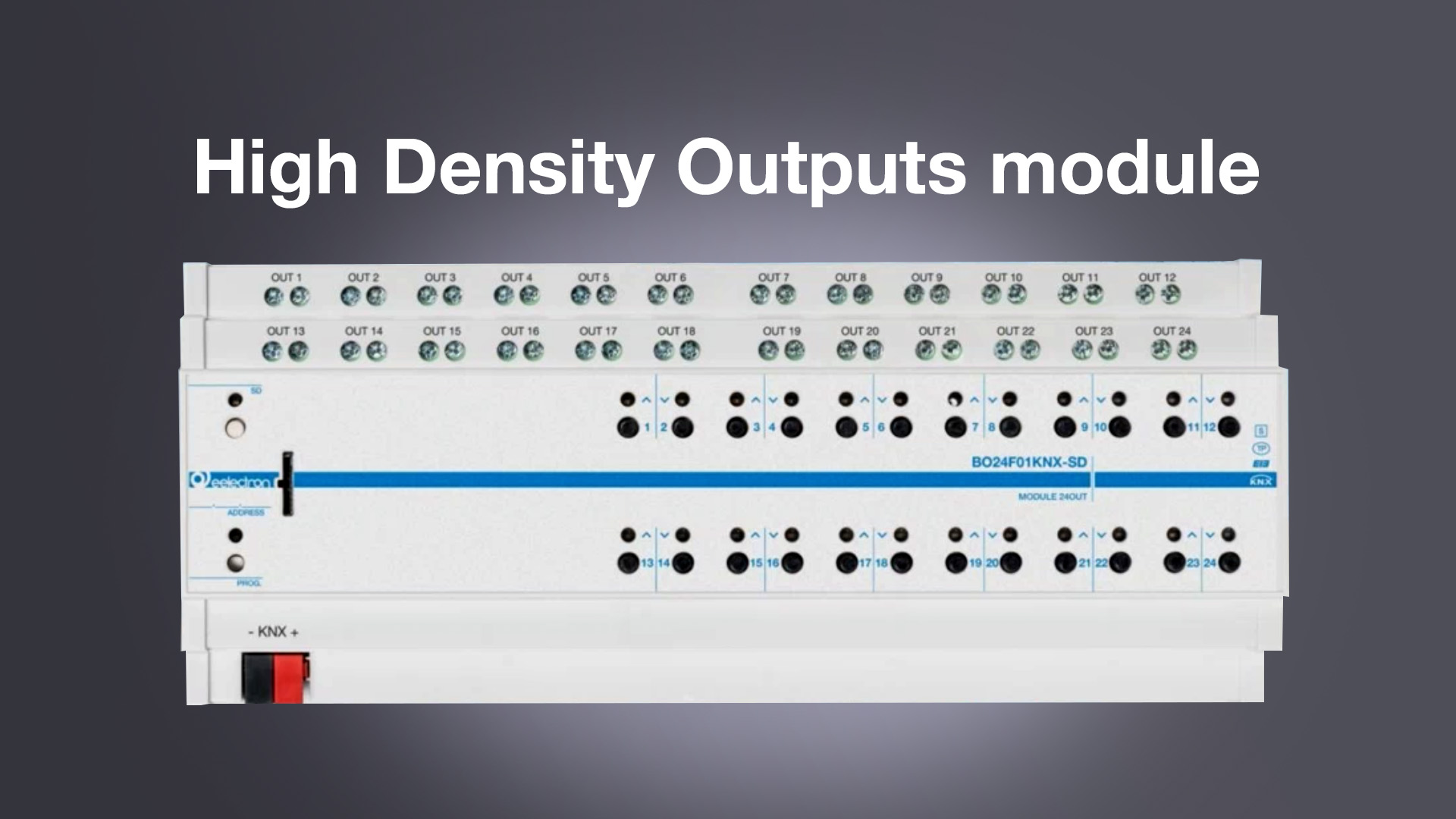

KNX 24-channel Switching Actuator, is a DIN rail EIB / KNX actuators with 24 relay outputs (16A each) that can be configured as:

– 24 outputs for light / load control
– 24 channels for valve in PWM (solenoid actuators)
– 12 channels for roller shutter / venetian control
– 12 channels for 3-point valve control
– 6 fan coil actuators 2-pipes / 4 fan coil actuators 4-pipes

It is also possible to combine 3,4 or 5 relays with logic interlock for 4-pipe / 3-speed fan coil control or combine groups of relays (up to 8) for special function using logic interlock.

An optional microSD feature can be purchased for reducing the configuration time to these typical programming areas, which is saving time, and labor time to implement the configuration.

Eelectron offers wide range of switching actuators, start with 4, 8, 12, 16 and 24 channel as mentioned above, with verity of technical features. the product Made in Italy and fits residential, hotel and building applications.
